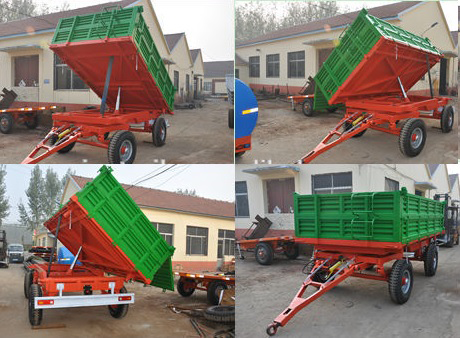

UMZ TIPPING TYPE TROLLEY (UKRAINE)

Technical Specification

Description

A

B

C

Type

Hydraulic Tipping

Hydraulic Tipping

Hydraulic Tipping

Capacity

5 Ton

8 Ton

12-15 Ton

Vessel Size*

10′ X 6′ X 2′

11′ X 6.5′ X 2.5’

12′ X 7′ X 2.5′

Floor*

MS Sheet SWG 10

MS Sheet SWG 10

MS Sheet SWG 08

Side Wall*

MS Sheet SWG 12

MS Sheet SWG 12

MS Sheet SWG 10

Chassis Frame*

Lower Channel:

7′ X 3′

10′ X 3′

10′ X 3′

Upper Channel:

6′ X 3′

6′ X 3′

7′ X 3′

Axle Size*

Length:

52”

56”

56”

Outer Dia:

5”

5.5”

6”

Wall Thickness:

3/8”

3/8”

3/8”

Rims

Qty

2

2

4

Size*:

8.25-20

9.00-20

9.00-20
